SNES controller to Genesis/Megadrive adapter
ContentsIntroduction
If you want to play games on your Genesis/Megadrive console but have a strong
preference for SNES controllers, or own many cool arcade sticks for the SNES
which you'd like to use, an adapter to connect SNES controllers to your
Genesis/Megadrive is exactly what you need.
I used an Atmel atmega8a MCU do build this adapter, and optimising
the code until it would react fast enough to the console requests was a fun challenge
which I
took the time to document.
See also:
SNES controller to Atari/Commodore adapter
Button mappings
Genesis | SNES 1 | SNES 2 | SNES 3 | SNES 4 | SNES 5 | SNES 6 |
---|
Start |
Start |
Start |
Start |
Start |
Start |
Start |
Mode |
Select |
Select |
Select |
Select |
Select |
Select |
A |
A |
B |
Y |
X |
A |
B |
B |
B |
A |
B |
Y |
B |
A |
C |
X |
Y |
A |
B |
X |
R |
X |
Y |
X |
L |
A |
Y |
Y |
Y |
L |
L |
X |
R |
L |
X |
Z |
R |
R |
R |
L |
R |
L |
D-Up |
D-Up |
D-Up |
D-Up |
D-Up |
D-Down |
D-Up |
D-down |
D-down |
D-down |
D-down |
D-down |
D-up |
D-down |
D-left |
D-left |
D-left |
D-left |
D-left |
D-right |
D-left |
D-right |
D-right |
D-right |
D-right |
D-right |
D-left |
D-right |
Enabling a mapping:
Mappings are enabled by holding buttons on the SNES controller when connecting the adapter or turning the console on.
Mapping | Activation |
SNES 1 | Default |
SNES 2 | Hold B |
SNES 3 | Hold Y |
SNES 4 | Hold X |
SNES 5 | Hold L |
SNES 6 | Hold R |
Note: SNES 6 mapping is not available yet.
Wiring
I used a simplified version of my
multiuse pcb2
for this project. The only components present are the microcontroller, capacitors, and a 16 MHz crystal.
Schematic:
Wiring:
Wiring tables for the Genesis/Megadrive (DB9-F connector) and SNES controller:
DB9 Pin | Signal name | AVR pin name |
1 | UP/UP/Z | PC5 |
2 | DN/DN/Y | PC4 |
3 | 0/LF/X | PC3 |
4 | 0/RT/ | PC2 |
5 | VCC | VCC |
6 | A/B | PC1 |
7 | SELECT | PD2 (INT0) |
8 | GND | GND |
9 | START/C | PC0 |
SNES pin | AVR pin name |
VCC | VCC |
GND | GND |
CLOCK | PB5 |
DATA | PB4 |
LATCH | PB3 |

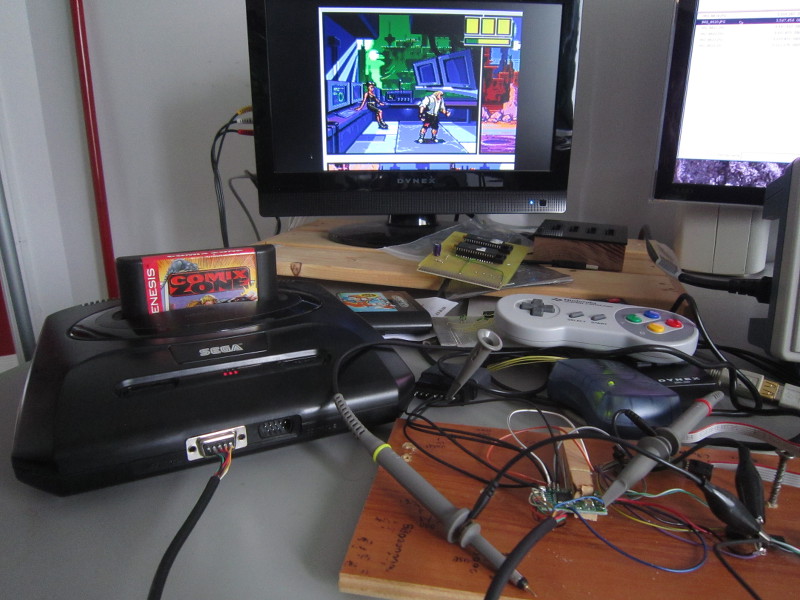

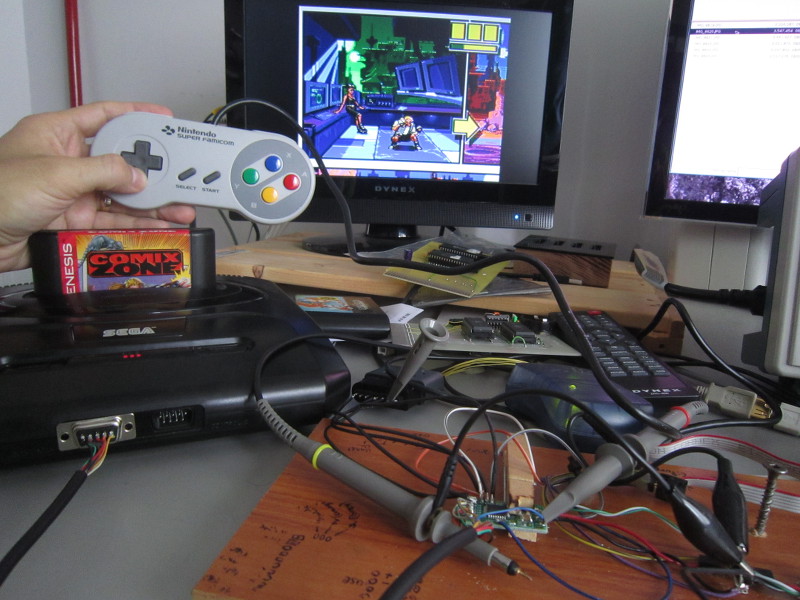

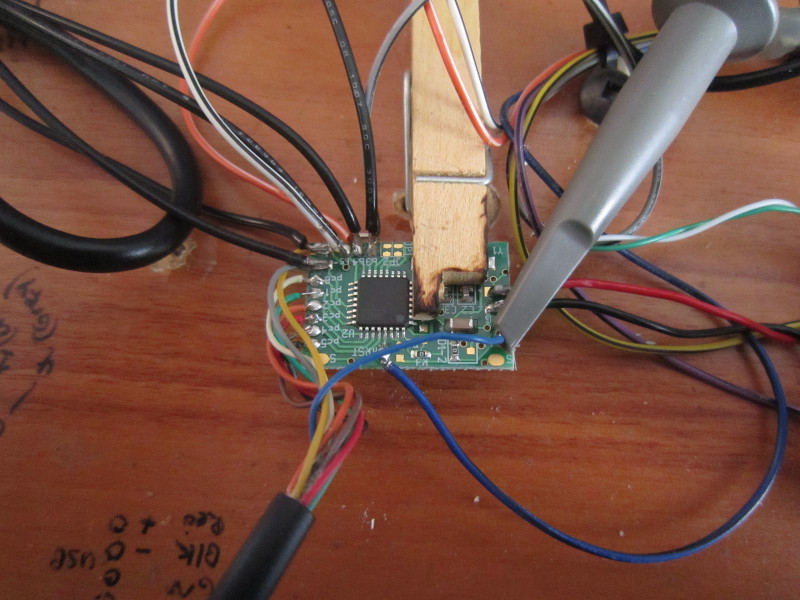

Here are a few pictures of my development setup, all wired according

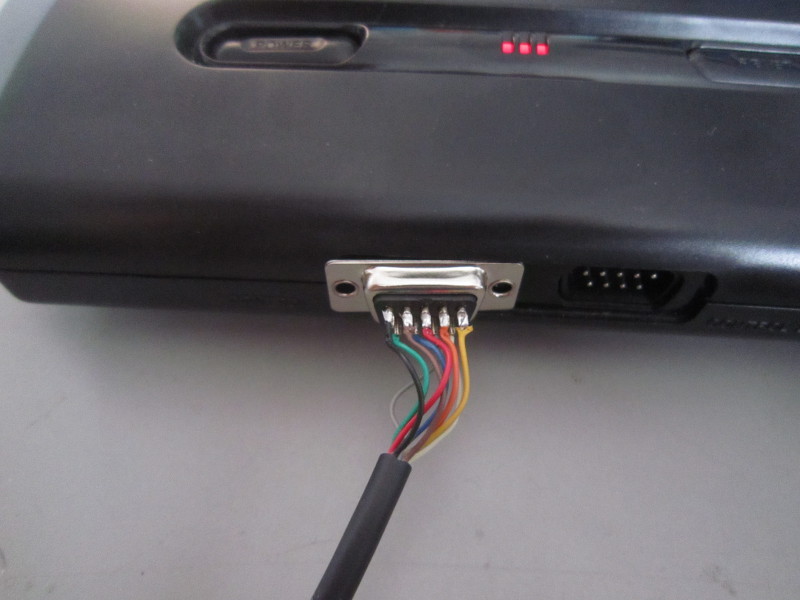

to the above tables. Notice how the standard
solder cup DB9-F I used to connect to the console cannot be fully
inserted. Ideally a Genesis/Megadrive controller or
extension cable should be used.
Firmware
Warning: Note that while this SNES to Megadrive/Genesis adapter and the
SNES to Atari/Commodore adapter share the
firmware below, they each have their own specific wiring. Never use an adapter built for Genesis/Megadrive on a Commodore or Atari system.
Version v1.6 October 26, 2019 (Saturday) |
---|
- Add a new mapping (SNES 6 - Hold R)
|
File(s): snes2md-1.6.tar.gz (21.4 KB)
snes2md.m168.1.6.hex (6.2 KB)
snes2md.m8.1.6.hex (6 KB)
|
Version v1.5.1 October 22, 2016 (Saturday) |
---|
|
File(s): snes2md-1.5.1.tar.gz (21.3 KB)
snes2md.m168.1.5.1.hex (6 KB)
snes2md.m8.1.5.1.hex (5.8 KB)
|
Version v1.4 July 26, 2014 (Saturday) |
---|
- The adapter is now usable with SMS games running on a Megadrive/Genesis
|
File(s): snes2md-1.4.tar.gz (20.6 KB)
snes2md-1.4.hex (5.8 KB)
|
Version v1.3 June 23, 2014 (Monday) |
---|
- Add a 3 button compatibility mode. Hold SELECT at power up to enable.
|
File(s): snes2md-1.3.tar.gz (20.5 KB)
snes2md-1.3.hex (5.4 KB)
|
Version v1.2 October 29, 2013 (Tuesday) |
---|
New features:- Added two new Genesis mappings
- Added a new Atari mapping
- Added support for 2nd fire button (Amiga)
- Added auto-fire for Atari mode (Button 1/Fire). Selectable auto-fire speed 30Hz, 25Hz, 20Hz, 16.667Hz, 15Hz and 12.5Hz
- Auto-fire lock mode for Button 1/Fire. (Toggled by START)
|
File(s): snes2md-1.2.tar.gz (19.8 KB)
snes2md-1.2.hex (5.3 KB)
|
Version v1.1.1 October 20, 2013 (Sunday) |
---|
Updated Atari mode mappings. |
File(s): snes2md-1.1.1.tar.gz (18.7 KB)
snes2md-1.1.1.hex (3.4 KB)
|
Version v1.1 October 8, 2013 (Tuesday) |
---|
Implemented Atari/Commodore support:- Two selectable button mappings
- Enabled by grounding PB1. Note: A slightly different DB9 wiring is required.
|
File(s): snes2md-1.1.tar.gz (18.6 KB)
snes2md-1.1.hex (3.4 KB)
|
Version v1.0 September 14, 2013 (Saturday) |
---|
Initial release:- Genesis/Megadrive 6 button pad emulation
- 3 Selectable button mappings
|
File(s): snes2md-1.0.tar.gz (18.1 KB)
snes2md-1.0.hex (2.8 KB)
|
Using the .hex files
The micro-controller (Atmega8 or Atmega168) needs to be programmed with the correct .hex file.
The "fuse bytes" for this project are:
- Atmega8: high_byte=0xc9, low_byte=0x9f.
- Atmega168: high_byte=0xdc, low_byte=0xd7, extended_byte=0x01
For more information about the tools required to program an AVR microcontroller,
please visit my
AVR programming page.
Source Code (.tar.gz files):
Unless indicated otherwise, the source code is published under the GPL license. Please
consult the included LICENSE file for more information. The project compiles using the
included makefiles using avr-gcc under Linux.
User pictures
I like seeing how others build my projects. If you build an adapter, please send me pictures and I'll add them here.

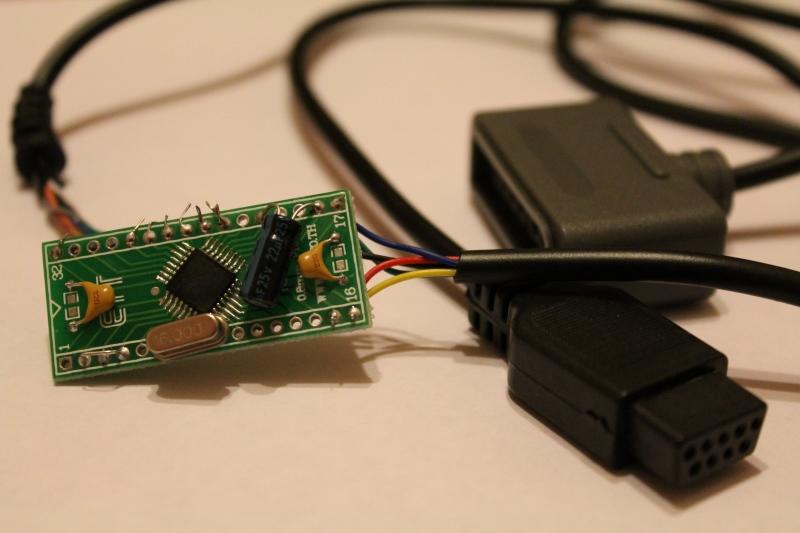

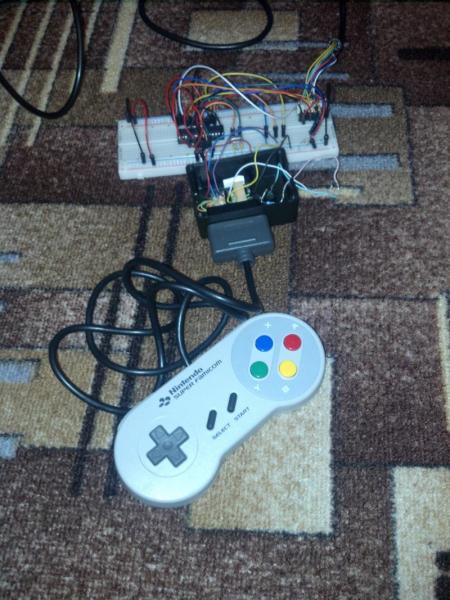

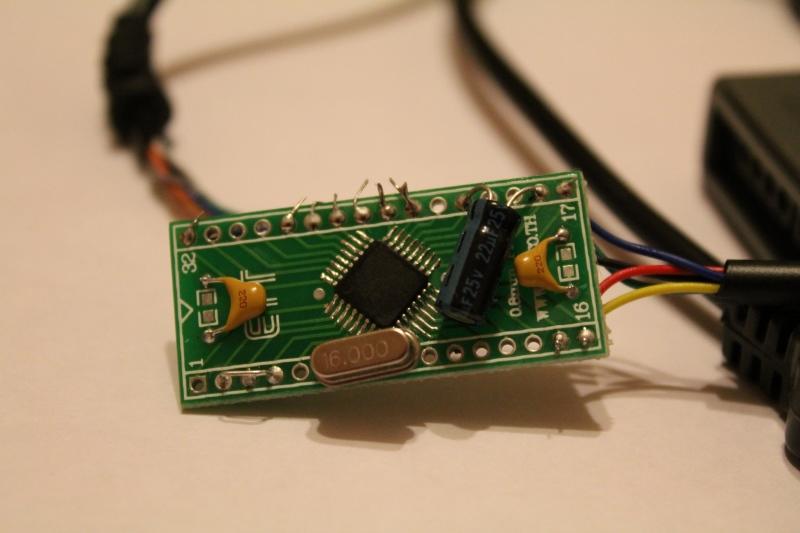

January 6, 2015 (Tuesday)Roman Sysoev from Russia sent me the following pictures of the prototype and final PCB version (enclosure still missing) of the SNES controller to Genesis/Megadrive he built.
References
The following document(s) were useful:
Disclaimer
I cannot be held responsible for any damages that could occur to you
or your equipment while following the procedures present on this page.
Also, I GIVE ABSOLUTELY NO WARRANTY on the correctness and usability
of the informations on this page. Please note, however, that the procedures
above have worked in my case without any damages or problems.
Now you cannot say that I did not warn you :)
