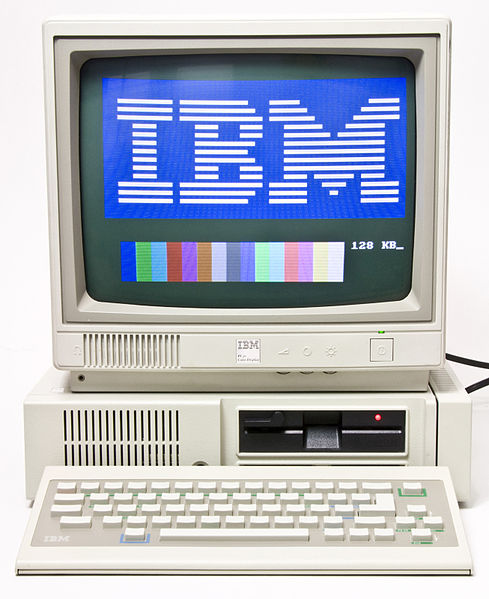

The IBM PCjr (The PC junior) is a cost-reduced
version of the IBM PC targeting the consumer market. The PCjr is clearly better equipped for
games than its big brother, the PC:
320x200, 4 colors
320x200, 16 colors
One channel, square wave, fixed volume.
3 Channels + noise, programmable volume
As an option (expansion card)
Two built-in ports
The video circuit supports a 320x200 graphics mode where simultaneous use of 16 colors is possible. (vs. only 4 on PC/CGA), and
and the audio side of things, the PSG SN76496 chip, with its 3 channles (square wave with programmable volume) + noise channel
is much more capable than the PC speaker (fixed-volume single square wave channel).
Despite the critics and the commercial failure of the PCjr, for someone like me who like programming
games for old PCs (such as RATillery) the PCjr has a very
interesting unique element: Cartridge slots! (just like game consoles and many non-PC systems such as
the Commodore 64!)

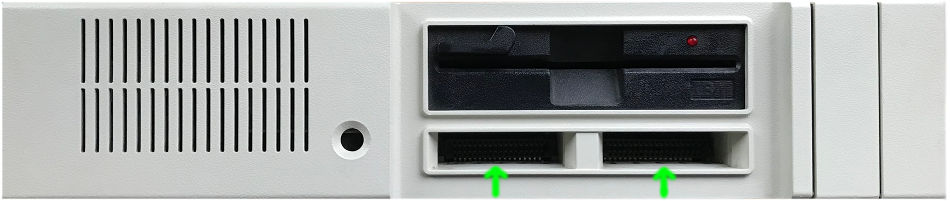

Above: The PCjr front side with its two cartridge slots.
So I thought it would be fun to make my own cartridges for the PCjr. I'm not the first to accomplish this,
for instance here is a PCjr cartridge project I found on hackaday.io.
Regardless, I wanted to make my own version using a single 64k ROM instead of two 32k ROMs. And I also wanted to make one
because if I ever try selling a game on cartridge, I'd rather use my own design instead of profiting from someone's else work...
In a nutshell, here's what I created:
A Circuit board able to hold a single 64k or 32k chip
A 3D-printable enclosure for a not-so-bad end result without using original cartridges as donors
A tool to convert self-contained .COM and .EXE DOS executables to cartridge format
Schematic and PCB (v1)
The chip select signals driven by the PCjr correspond to a series of consecutive 32k memory ranges:
I decided to use CS4 and CS5. If I had used two 32k ROM chips, it would have been a simple matter of wiring each
chip select to a seingle chip. But in this case, as I used a single 64k chip, I had to add a 74LS08 (AND gate) so that when either of the chip select signals
would fall low, the ROM output would be enabled.
This probably begs the question: What's the point of using a single ROM if you still need to install two chips in the cartridge!? The answer: Les expensive and less pins to solder (so faster). The 64k ROM only costs 12% more than the 32k model in the same family (AT27C512R vs. AT27C256R), there is only one ROM to program (less manufacturing steps) and a lower
number of pins to solder (the 74als08 hcip only has 14 pins, whereas a 32K ROM has 28...).

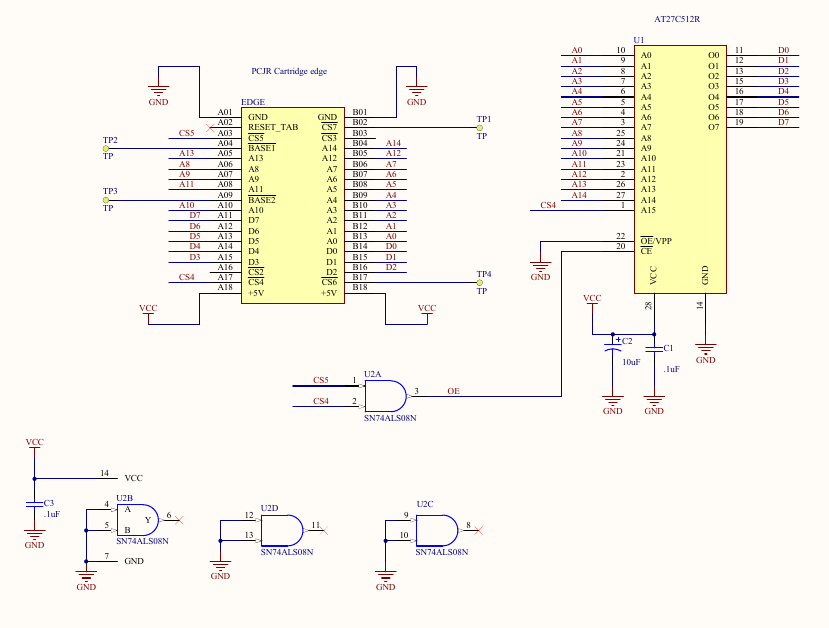

Now, here is the schematic:

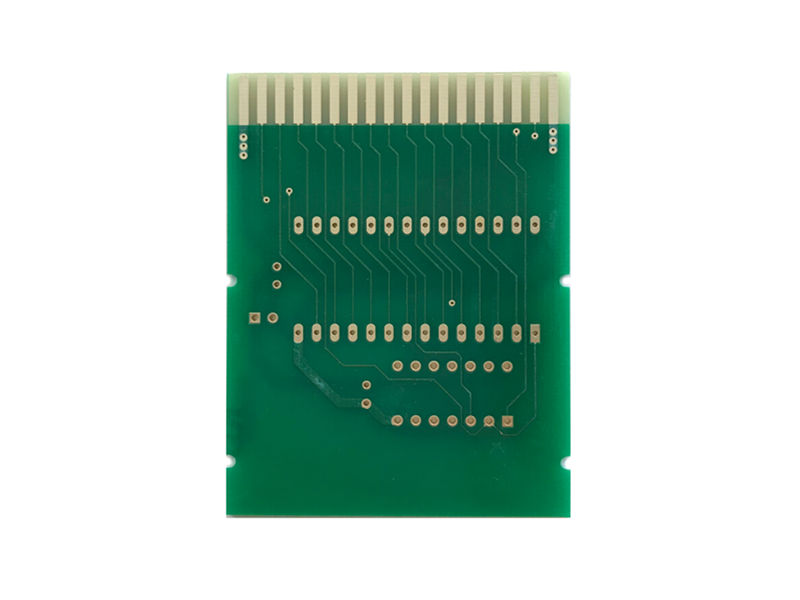

And now here are a few pictures of the printed circuit board:

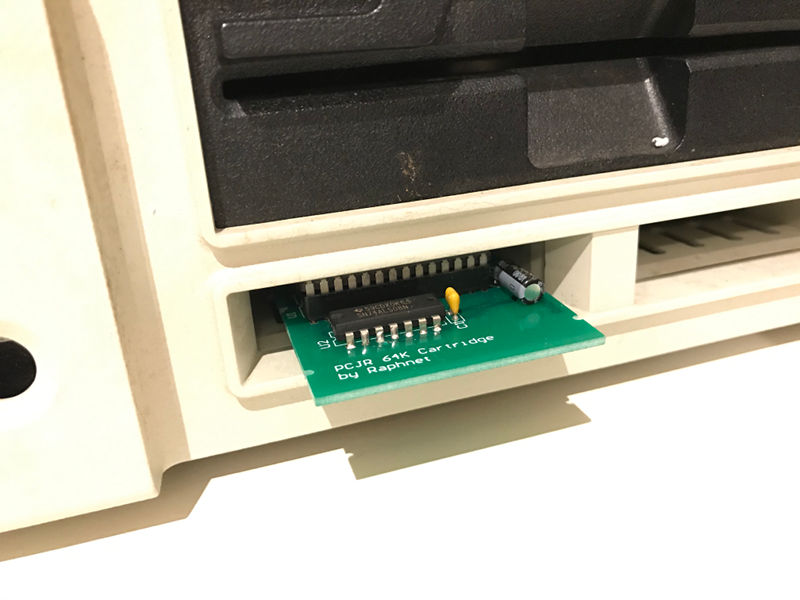

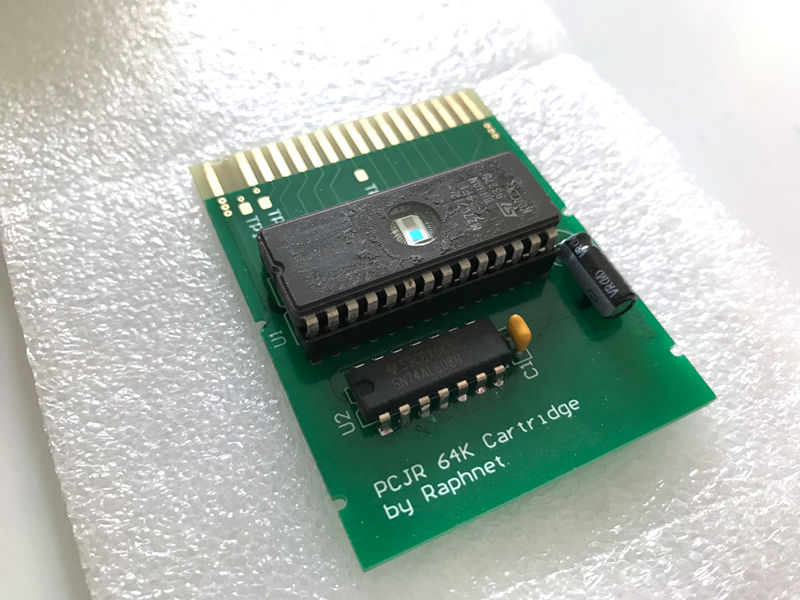

I installed an IC socket on the first unit for easy ROM replacement and
testing. This uses more vertical space, but it still fits:
Schematic and PCB (v3)
After some time, I wanted to try new things, such as using
32k EPROMs (which should normally have 5 volt applied to pin 1) and
using CS6 and CS7 to test a modified BIOS. But my first design was
not really meant for this...

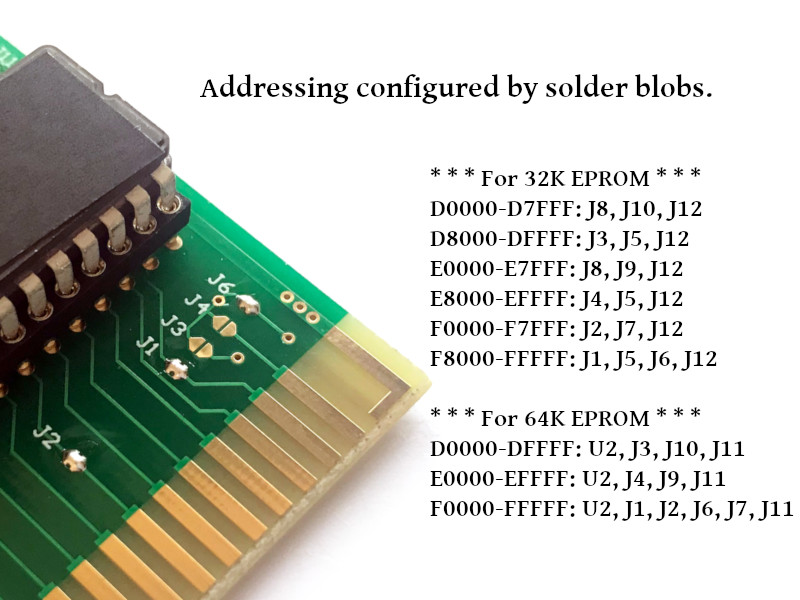

So I made a new design! This one can be configured to use different
Chip Selects through solder blobs. I chose not to use jumpers because
in production (when assembling many cartridges) it is faster. Not
to mention a bit cheaper too.
The new design also has proper 32K ROM

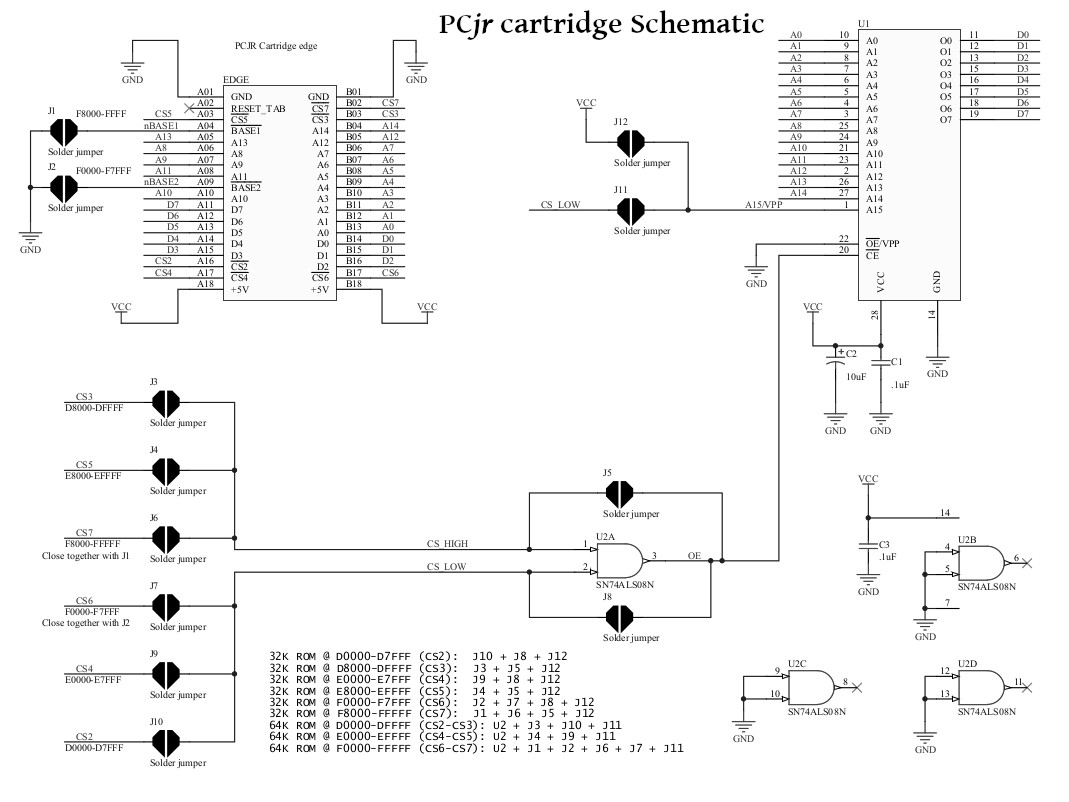

support. Here is the schematic:

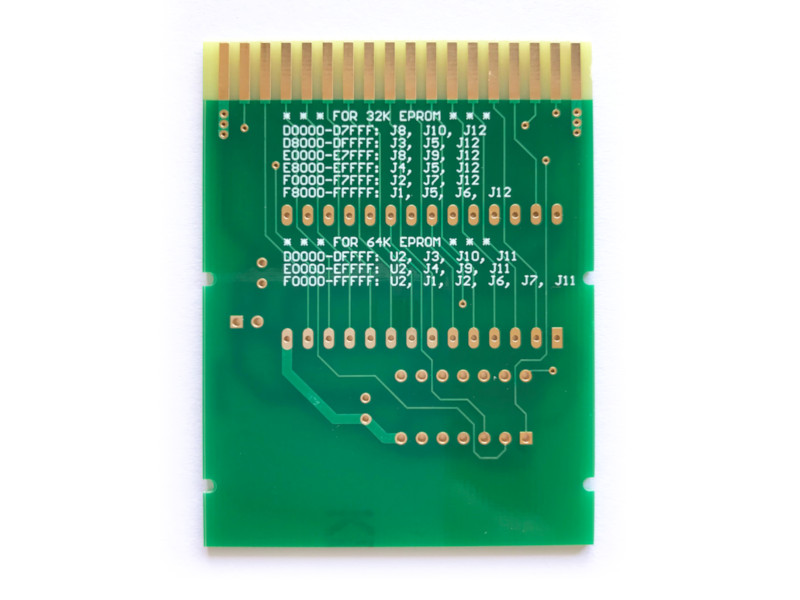

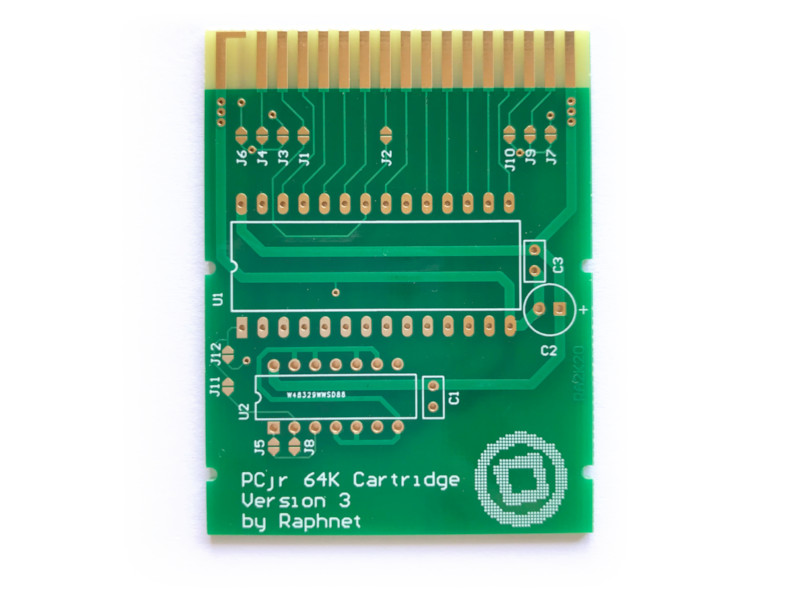

Here are a few pictures of the new PCB:

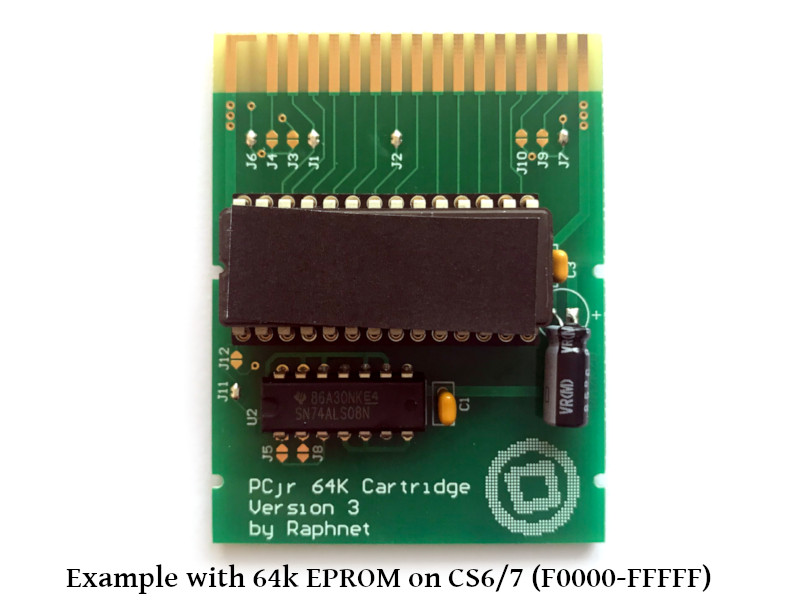

Example replacing the BIOS
I ordered a moderately large quantity, so I am also selling those below:
Oh, and in case you were wondering what happened to version 2, yes, it exists. It is
almost identical to version 3, but I made a catastrophic mistake when routing the
PCB and do not have anything useful to show.

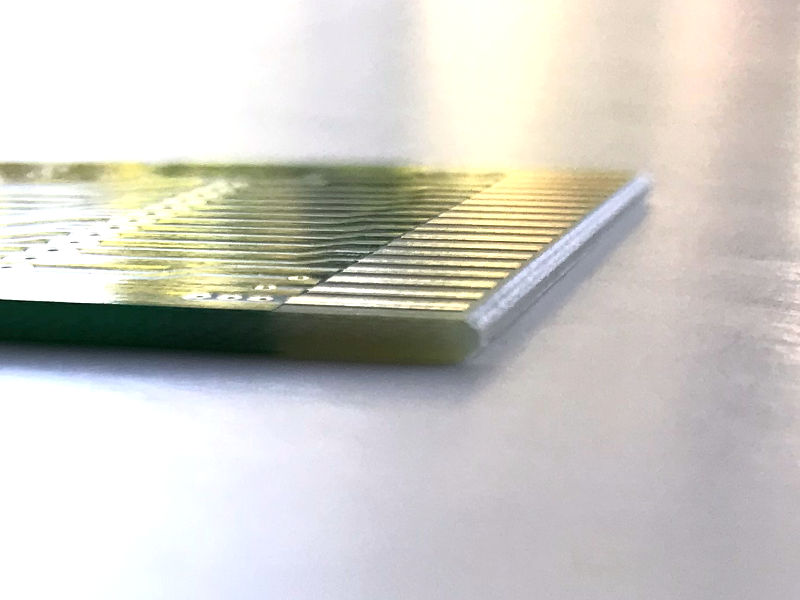

My PCB is designed to match the dimensions of the original IBM circuit board I used as a model,
so installing it in original cartridge shells is possible. However, destroying original IBM cartridges

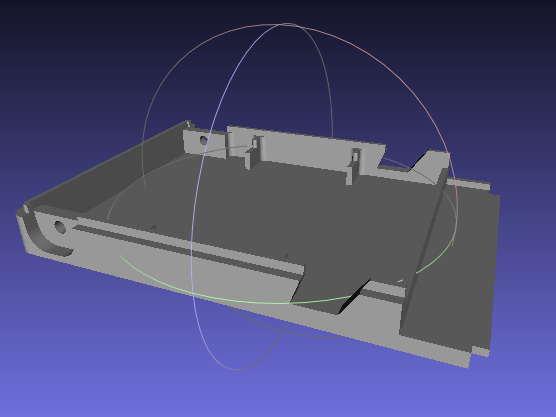

to install a new board feels wrong, so I decided to make my own with a 3D printer.
I tried designing and printing a cartridge with snap hooks similar to those of the IBM cartridges.
On my monitor it looked fine, but once printed, the fate of the hooks was clear: Break!

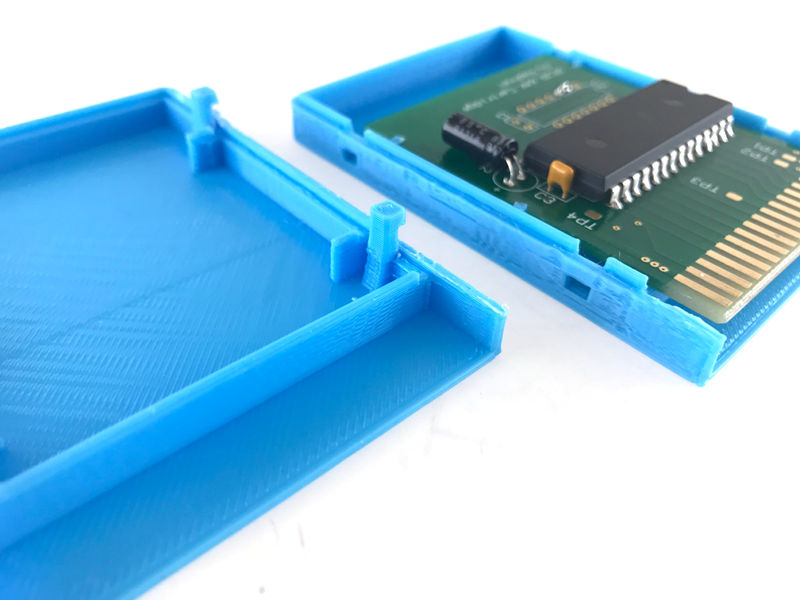

Hooks that failed
I must have tried printing 4 or 5 versions, adjusting the hook geometry each time, but in the end I have up
the idea... I decided I would just use screws. But I used some kind of jigsaw pattern in the front to
save two screws there.

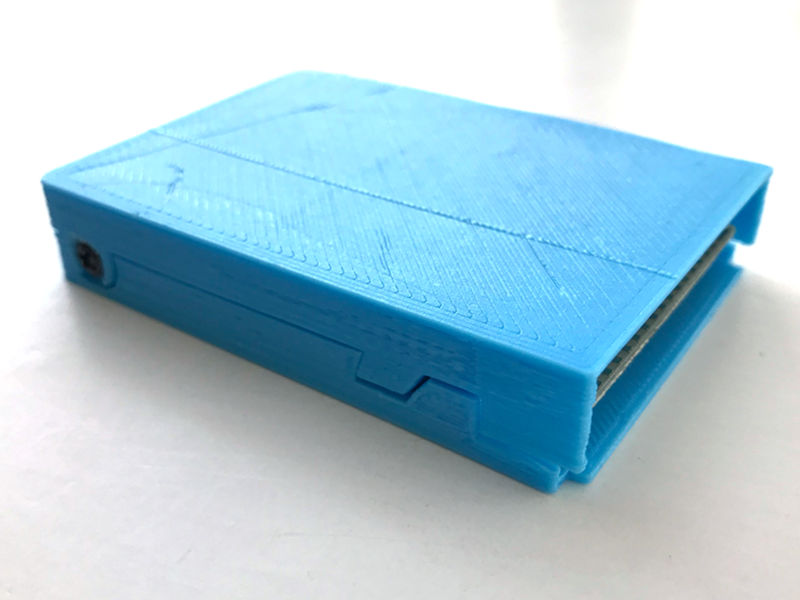

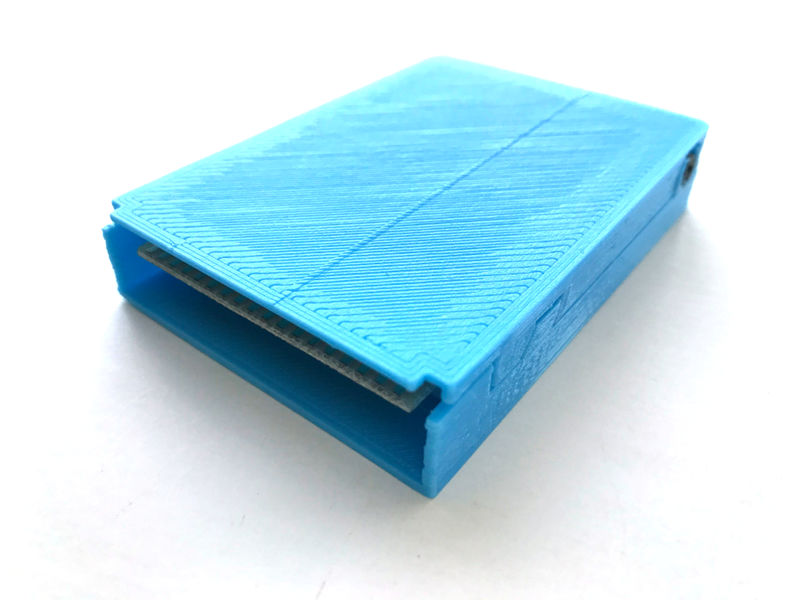

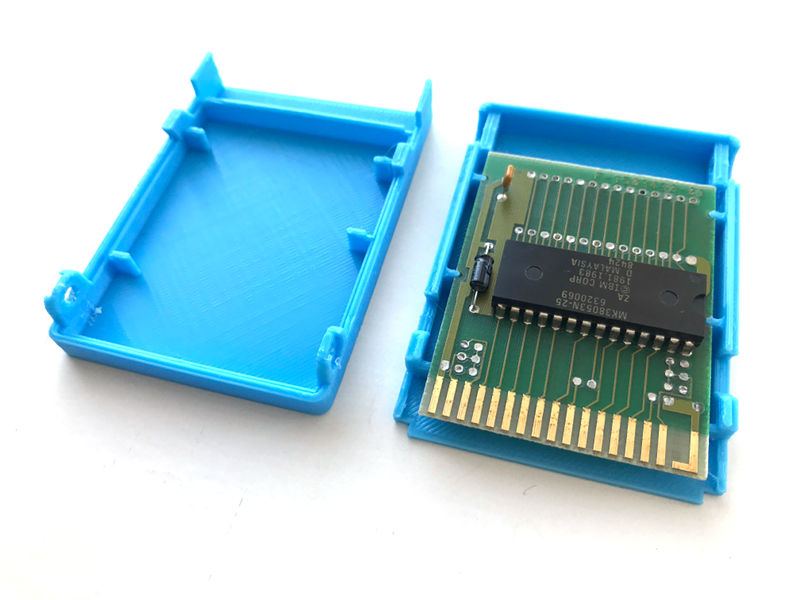

Here are a few pictures of the final version. The circuit board inside is not mine, it's the board
from a BASIC cartridge.
Converting DOS executables
A while ago I developed a tool called Booterify which is able to convert standalone .COM and .EXE executables
to bootable disk image, so all the hard work was already done. I just had to replace the code which reads sectors from the floppy disk by a simple memory copy
routine (copies from ROM to RAM).

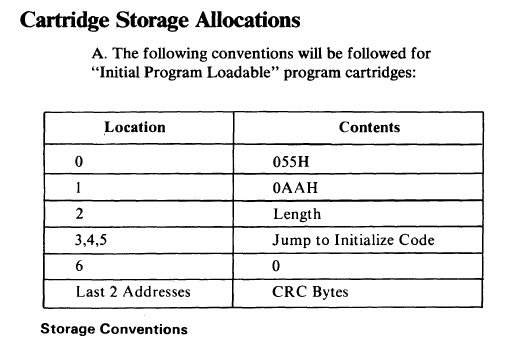

But that's only the first step. Unless some conditions are met, the PCjr will not transfer control to the program stored in the cartridge ROM. The requirements
are documented in the PCjr technical manual:
In other words:
The two first bytes must be 0x55 and 0xAA.
The third byte indicates a size, given in 512 byte blocks.
The code (typically a JMP instruction) is at the 4th byte.
The last two bytes are a CRC 16 (same polynomial as used for Xmodem).
Here is how I go about converting a .COM or .EXE game to a ROM for PCjr using Booterify and the newly included
First, Booterify's job:
The loader (pcjrloader.asm) is compiled by nasm.
Booterify loads the compiled loader (pcjrloader.bin) and the executable (for instance, GAME.COM)
Booterify patches the loader with informations about the executable (Initial segment values, initial instruction
pointer) and also patches the executable if necessary (i.e. EXE relocations).
Booterify outputs a file containing the patched loader followed by the core of the executable.
This first step creates the file tmp1.bin. But before burning it to a ROM, some additional manipulation
must be done using jrromchk:
Adjust the size so it's a multiple of 512.
Write the correct size in the ROM header (3rd byte) using the -s option.
Compute the CRC and write it at the end with the -p option.
./jrromchk -s -p -o rom.bin tmp1.bin
Now, all that's left to do is write the resulting rom.bin file to an EPROM solder (or insert in socket) on the cartridge PCB.
If you are doing development, testing inside an emulator first can save you a lot of time, especially if you use UV-erasable
EPROMs which require several minutes to erase.
The SVN version of DOSBox supports the pcjr machine type and can load PCjr .JRC roms using the BOOT command. This is
extremely useful! That's why jrromchk offers the option of generating a .JRC file using the -j option:
./jrromchk tmp1.bin -s -p -o rom.jrc -j

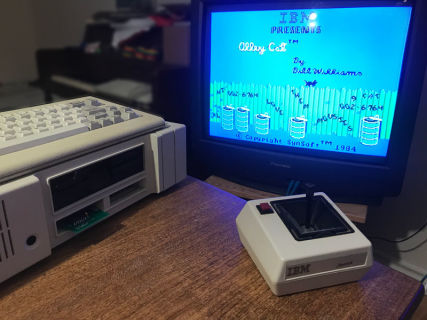

Making an Alley Cat cartridge!
The game Alley Cat (is an introduction necessary?)
makes use of the additional sound and video capabilities of the PCjr. 3-channel sound is only used at the title
screen. For graphics however, the game makes good use of a 4-color mode where individual colors can be selected,
rather that being retrained to the much loved/hated CGA colors. This means that the cheese is.. well it's yellow at last!

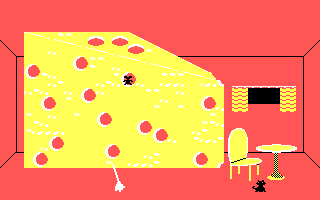

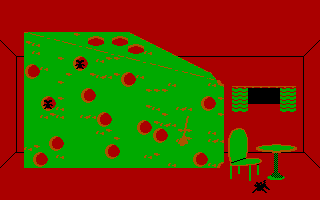

CGA Version (This cheese is NOT appetizing)
Alley Cat was originally a PC Booter, that is a game which does not (typically) use DOS and starts directly
from its floppy. The original Alley Cat floppy without doubt works fine on the PCjr... But having a cartridge version
of this excellent classic game would be very exciting, wouldn't it!? You want one, yes? Of course you do.
Step 1 : Obtaining the game in executable format
There are a few DOS conversions of Alley Cat floating around (for instance, CAT.EXE) on the net,
but some are missing the PCjr-specific code, others had their title screen vandalised by
the individual who did the conversion to DOS format (.COM or .EXE) from the original PC Booter disk. My
recommendation is therefore to work from the original disk, or otherwise from a disk image (for instance,
Some time in 2015, the game got patched to enable enhanced sound and graphics on the Tandy 1000 computer series (Those are clones/successors to the
PCjr), and the version posted by NewRisingSun in the vogons.org forum thread dated
December 13, 2015 contains the MAKEDOSV.COM tool (Make Dos Version?) which will read the original floppy and create ALLEYCAT.EXE. Just insert your disk,
type MAKEDOSV and a few moments later you'll have a parfectly working and intact ALLEYCAT.EXE in the current directory.
If you only or already have a floppy image, you can also use MAKEDOSV and DOSBox to create an executable.
Simply place ALLEYCAT.IMG and MAKEDOSV.COM in a directory of your choice, start DOSbox there and type:
For reference, here are the MD5 of the files involved here:
./booterify -s 0x0051 -f 0 pcjrloader.bin ALLEYCAT.EXE tmpcat.bin
./jrromchk -s -p -o ALLEYCAT.ROM tmpcat.bin
# Optional: A .JRC version for testing in DOSBox
./jrromchk -s -p -o ALLEYCAT.JRC -j tmpcat.bin

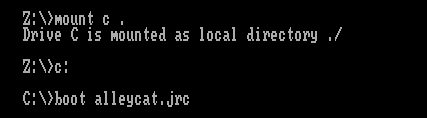

To test the .JRC version in DOSBox, you need a recent DOSBox version (possibly an SVN build) and set
machine=pcjr in the config file (or use -machine pcjr on the command-line). The BOOT command
takes care of everything else:
Step 3 : Program your ROM, put it in the cartridge...
Now you need to program a ROM with the contents of the ALLEYCAT.ROM file created above. How this is done
depends on your programming equipment and is outside the scope of this article.

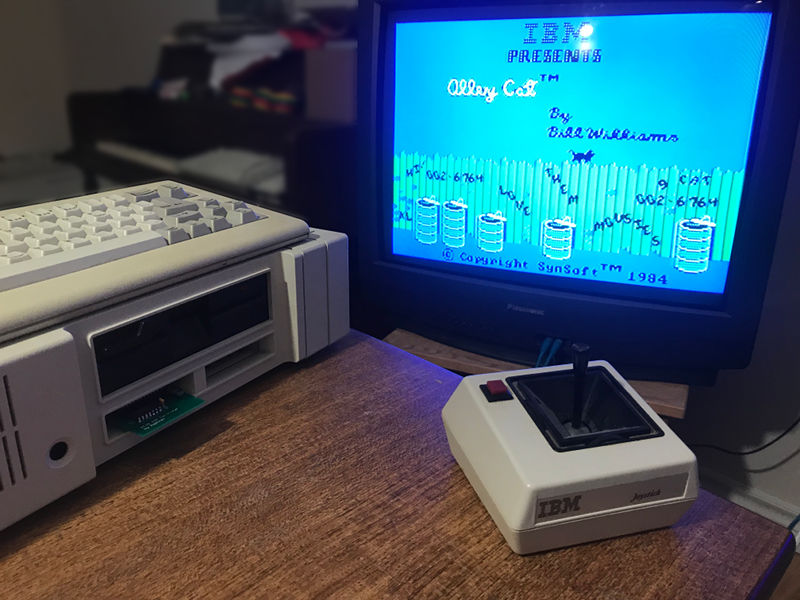

Install or solder the programmed chip on the cartridge circuit, insert the cartridge in the PCjr, turn it on.... And here you go!
Now, why not a small video where you can listen to the 3 channel version of the theme song?
IBM PCjr Technical Reference Manual
For the cartridge pinout and BIOS startup requirements.
I cannot be held responsible for any damages that could occur to you
or your equipment while following the procedures present on this page.
Also, I GIVE ABSOLUTELY NO WARRANTY on the correctness and usability
of the informations on this page. Please note, however, that the procedures
above have worked in my case without any damages or problems.
Now you cannot say that I did not warn you :)
