I own a NES (Nintendo Entertainment System) which is in very good shape. Unfortunately,
I dont own many games, and some games are very hard to find (eg: Bubble Bubble).
I decided to hack a cartridge to be able to reload it with the software of my choice,
which may be a game, a demo, a home-made game, or maybe someday my own software.
I used two AT49F002 (256K) flash chips. I program them using an universal eprom programmer.
The chips and sockets are so thick that I could not close the cartridge anymore. That's why
I cut a hole in the cover. This way it's also be easier to replace the chips (no need
to open the cartridge).
A nes cartridge usually contains 2 Roms (read only memory). One rom is used
by the CPU and contains the program and the other rom is used by the PPU (Picture Processing
Unit) and contains artwork. Those 2 roms are on separate Busses.
The nes CPU can only address 16 bits, which means 65536 bytes of memory. The memory space is split
in two halves, the first 32K are for RAM and IO, the second 32K is mapped to the cartridge ROM.
The PPU have similar limitations.
The allow the use of more memory, supplemental chips are required in the cartridge. Those are named mappers
and make bank switching possible. With bank switching, it is possible to point an address range (from the CPU
point of view) to various areas in the ROM. eg: Address range $C000-$FFFF which normally points to
the range $4000-7FFF in ROM could point to $8000-$C000 instead. This is transparent from the CPU point
of view. (except the actual operation of switching bank).
Many different mapper chips exists, and some mappers are very complex. The mapper present in my cartridge is a
MMC1 by Nintendo. Here is some documentation about this mapper: mmc1.txt.
Since I wanted to play Bubble Bobble and this game uses MMC1, I chose to use the Motor City Patrol cartridge
which also uses the MMC1.
In the cartridge, there is also a protection chip (CIC). The CIC chip communicates with the CIC chip inside the
NES. If the communication is successful, the NES's CIC chip stops resetting the NES at 1hz and the game can run. I
just left the chip were it was.
I chose to use AT49F0002 (256K) flashs because I had some in stock. Nintendo's roms pinout at my flash pinouts differ. I
had to cut traces on the pcb and solder some wires. Fortunately, there were just a few differences. Here is the
document from which I learned the Nintendo ROMs pinout: NES_ROM_Pinouts.txt. Here is
another document in which I found the MMC1 pinout: rom.txt
On the internet, NES roms are usually distributed in .nes format. A .nes file contains data
from the 2 cartridge roms (PRG and CHR) and a header to specify which mapper is used, the type of mirroring,
and the roms sizes. I needed a tool to extract the 2 roms that would work on Linux so I coded my own.
(I have not extensively searched).
readnes reads the .nes header, prints the mapper used, prints the type
of mirroring, prints the number of prg and chr banks and
generates 2 files. One file containing the PRG rom data and another
file containing the CHR data.
The content of the PRG or CHR rom can be output more than one time to
the PRG or CHR file. This has been useful for me when I had a 128K game
to put in a 256K cartridge. Bacause of the way the MMC1 was used, the A14
address line was changing and at times unprogrammed data was read. After repeating
the same data 2 times in PRG rom, the state of the A14 line did not matter
$ ./readnes BUBBLE.NES 2 1
File length :262288 Bytes
NES PRG: 08 CHR: 10 MAPPER: 11 44
PRG 8 pages of 16kb (131072 bytes)
CHR 16 pages of 8kb (131072 bytes)
End at 262160
Remaining bytes: 128
BUBBLE BOBBLE From MINDRAPE and EFX
All is left to do after that is too write the .prg and .chr into Flash/ROM.
Nesgg takes one or many NES game genie codes (6 or 8 letters) from the
command line and displays what they mean.
Addresses are displayed as seen by the NES cpu. Shift them right by one to obtain
6 letter codes simply replace a byte at a given address.
8 letters codes replaces a byte at a given address only if the value contained
at the same address is equal to the value specified in the game genie code. This
prevents the game genie from replacing values that should not be changed.
(eg: with bank switching, a NES CPU address does not always represent the same
address in ROM).
The 3 codes above are for Bubble Bobble. They change the initial number of lives (1, 6 or 9).
It is clear that the byte at address $9470 reprents the initial number of lives.
Here is a file explaining how NES game genie codes are encoded: nesgg.txt
patchnes applies one or many NES game genie codes to a .NES rom (no mapper or MMC1
This will work 100% reliably mapperless roms.
On MMC1 roms, there is a small chance that the wrong value will be changed.
That's because I cannot know in advance wether the game will use 32K or 16K bank
switching, and I cannot know where the banks will be used (high or low rom). I
assume the game uses 16Kb banks and that each bank will be used at High and low
locations. Doing so increases odds of replacing the right value at the right
I have applied a few codes to Bubble Bubble (MMC1) and it seems to work ok.
$ ./patchnes BUBBLE.NES PAUKEZLE
Working on rom BUBBLE.NES
Applying 8 letters code 'PAUKEZLE'
Not replacing $11 by 09 at address $9470 because it is not $03
Not replacing $02 by 09 at address $D470 because it is not $03
Not replacing $C4 by 09 at address $11470 because it is not $03
Not replacing $F1 by 09 at address $15470 because it is not $03
Not replacing $A9 by 09 at address $19470 because it is not $03
Not replacing $4C by 09 at address $1D470 because it is not $03
Replaced $03 by $09 at address $21470
Not replacing $FC by 09 at address $25470 because it is not $03
To program the flashs, I use an old universal programmer from
xeltek. You can buy an
universal programmer from ebay for approximately 50$ US. You
may also build your own programmer since the flash datasheet
explain how to program them.
Here we can see the SL-ROM-6 pcb from the Motor City Patrol cartridge. I replaced the roms by two
32 pin sockets. I modified the PCB so the sockets would accept the pinout of the AT49F002 flash
roms I use.
It's not easy to see in this picture, but the chips really are in sockets.
Here are some pictures of my cartridge programmed and working: Note: This NES does not have a VGA output. I'm using a video capture card.

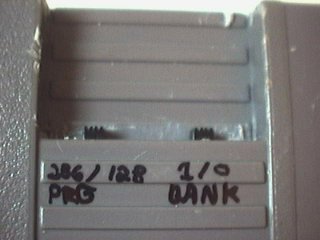

A few days later, I realized that I could put two 128Kb games in my 256Kb flash chips. Selecting
which game(or bank) to use is as simple as putting a high or low level on the most significant
address bit (Right switch). To keep support for 256Kb games, I simply connect the signal from the
mapper to the most significant bit, as it was before. (Left switch).
I had to cut more tracks to redirect the signals. Here is a picture of the wiring:
I cannot be held responsible for any damages that could occur to you
or your equipment while following the procedures present on this page.
Also, I GIVE ABSOLUTELY NO WARRANTY on the correctness and usability
of the informations on this page. Please note, however, that the procedures
above have worked in my case without any damages or problems.
